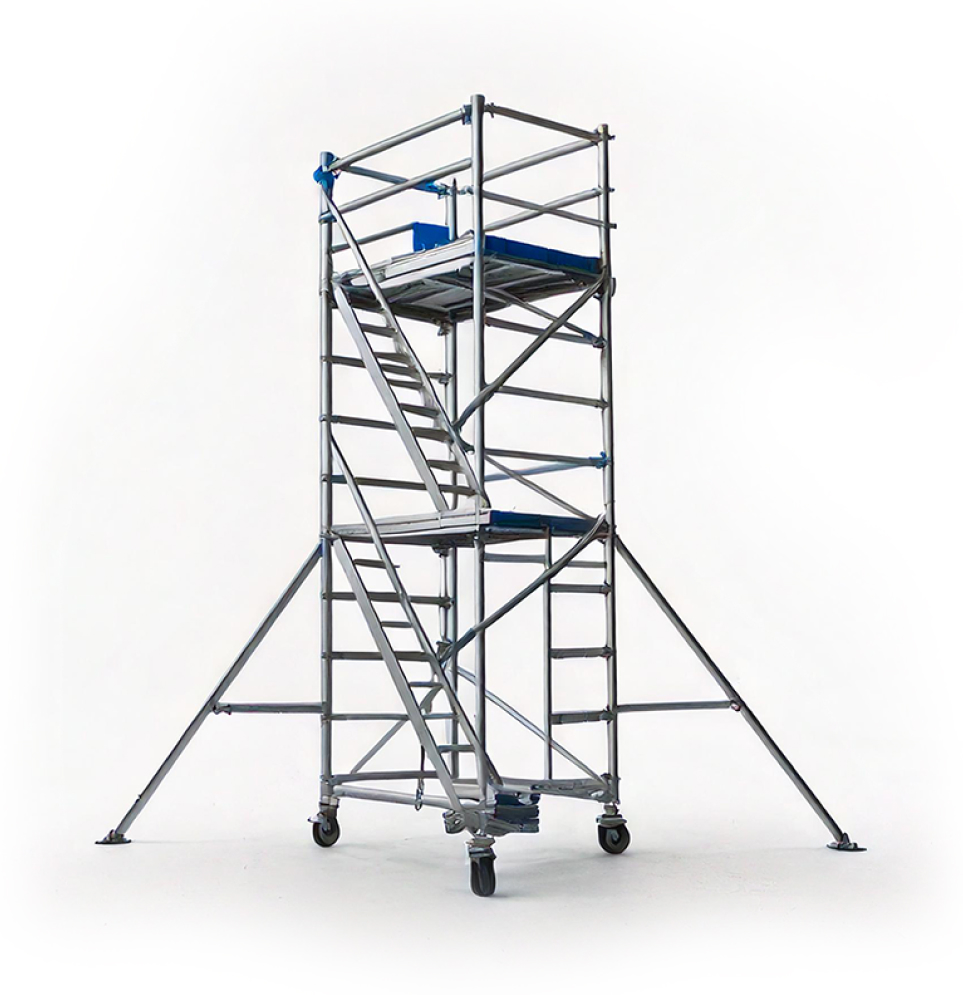

Aluminium stairway scaffolding tower with an internal staircase and guardrails for safe worker access

Stairway Aluminium Scaffolding Tower

Our Stairway Scaffolding is a modular, mobile access tower built for frequent, comfortable movement between work levels. Its wide entry frame and anti-slip stair steps allow secure, easy climbing, while adjustable components extend working heights from 4.4m up to 18.4m and carry 200 kg/m² of platform load. Designed to meet strict safety standards, it's the reliable choice for MEP, HVAC, and maintenance teams needing safe, repeatable access to elevated work areas.

Inquire For Rent or Sale

SCAFFOLD SIZE (1.35M X 1.8M )

MODEL NO.

IST034

IST045

IST054

IST065

IST074

IST085

IST094

IST105

IST114

IST125

IST134

IST145

IST154

IST165

IST174

WORKING HEIGHT (M)

4.4

5.5

6.4

7.5

8.4

9.5

10.4

11.5

12.4

13.5

14.4

15.5

16.4

17.5

18.4

TOWER HEIGHT (M)

3.4

4.5

5.4

6.5

7.4

8.5

9.4

10.5

11.4

12.5

13.4

14.5

15.4

16.5

17.4

PLATFORM HEIGHT(M)

2.4

3.5

4.4

5.5

6.4

7.5

8.4

9.5

10.4

11.5

12.4

13.5

14.4

15.5

16.4

Pricing

₹75,600

₹93,600

₹111,600

₹131,400

₹151,200

₹169,200

₹187,200

₹205,200

₹223,200

₹241,200

₹259,200

₹277,200

₹295,200

₹313,200

₹331,200

SCAFFOLD SIZE (1.35M X 1.8M )

MODEL NO.

WORKING
HEIGHT (M)

TOWER
HEIGHT (M)

PLATFORM
HEIGHT (M)

PRICE (₹)

IST034

4.4

3.4

2.4

₹75,600

IST045

5.5

4.5

3.5

₹93,600

IST054

6.4

5.4

4.4

₹111,600

IST065

7.5

6.5

5.5

₹131,400

IST074

8.4

7.4

6.4

₹151,200

IST085

9.5

8.5

7.5

₹169,200

IST094

10.4

9.4

8.4

₹187,200

IST105

11.5

10.5

9.5

₹205,200

IST114

12.4

11.4

10.4

₹223,200

IST125

13.5

12.5

11.5

₹241,200

IST134

14.4

13.4

12.4

₹259,200

IST145

15.5

14.5

13.5

₹277,200

IST154

16.4

15.4

14.4

₹295,200

IST165

17.5

16.5

15.5

₹313,200

IST174

18.4

17.4

16.4

₹331,200

KEY FEATURES

01. Modular Design

Standard scaffolding width (1.35m) and length 1.80m for versatile configuration.

02. Adjustable Height

Working heights can be extended from 4.4m to a maximum of 18.4m using standard components.

03. Easy Access

Wide entry frame allows comfortable entry from outside, and anti-slip stair steps ensure secure climbing.

04. Robust Loading Capacity

Supports up to 200 kg/m², with platform-specific capacities ranging from 480 kg to 810 kg.

05. Stability and Safety

Free-standing height of 12.4m indoors and 8.4m outdoors ensures stability and complies with safety standards.

Stairway Scaffolding Specifications

Indoor Innovations manufactures its aluminium stairway scaffolding tower in Panipat, Haryana, in 15 standard models from IST034 to IST174. Every model uses the same 1.35 m × 1.80 m platform and an internal stairway with anti-slip steps, so crews walk up to the working level instead of climbing a vertical ladder.

Platform size	1.35 m wide × 1.80 m long
Models	15 standard models, IST034 to IST174
Working height	4.4 m to 18.4 m
Platform height	2.4 m to 16.4 m
Tower height	3.4 m to 17.4 m
Platform load	200 kg/m², with platform-specific capacities from 480 kg to 810 kg
Free-standing height	12.4 m indoors, 8.4 m outdoors
Access	Internal stairway with anti-slip steps and a wide entry frame
Material	6063-T6 aluminium alloy
Standards	Built to EN 1004 and IS 2750, made under an ISO 9001:2015 certified quality system
Assembly	Tool-free, using standard components
Supply	Rent or purchase, delivered across India
Purchase price	₹75,600 (IST034) to ₹331,200 (IST174)

Working Height, Platform Height and Tower Height

Each stairway tower model is listed with three heights. Knowing the difference stops you renting a tower that is too short or paying for one that is too tall.

Platform height

The height of the deck the worker stands on. It ranges from 2.4 m on the IST034 to 16.4 m on the IST174.

Working height

How high a person standing on the platform can comfortably reach. On every model it is 2 m above the platform height.

Tower height

The overall height of the structure, including the guardrails above the platform. On every model it is 1 m above the platform height.

Choose Your Stairway Tower Model by Height

Measure the highest point you need to work on, such as a ceiling, duct, beam or light fitting. Then pick the first model whose working height meets or exceeds it.

Highest point to reach	Model	Working height	Platform height	Purchase price
Up to 4.4 m	IST034	4.4 m	2.4 m	₹75,600
Up to 5.5 m	IST045	5.5 m	3.5 m	₹93,600
Up to 6.4 m	IST054	6.4 m	4.4 m	₹111,600
Up to 7.5 m	IST065	7.5 m	5.5 m	₹131,400
Up to 8.4 m	IST074	8.4 m	6.4 m	₹151,200
Up to 9.5 m	IST085	9.5 m	7.5 m	₹169,200
Up to 10.4 m	IST094	10.4 m	8.4 m	₹187,200
Up to 11.5 m	IST105	11.5 m	9.5 m	₹205,200
Up to 12.4 m	IST114	12.4 m	10.4 m	₹223,200
Up to 13.5 m	IST125	13.5 m	11.5 m	₹241,200
Up to 14.4 m	IST134	14.4 m	12.4 m	₹259,200
Up to 15.5 m	IST145	15.5 m	13.5 m	₹277,200
Up to 16.4 m	IST154	16.4 m	14.4 m	₹295,200
Up to 17.5 m	IST165	17.5 m	15.5 m	₹313,200
Up to 18.4 m	IST174	18.4 m	16.4 m	₹331,200

Free-standing height is 12.4 m indoors and 8.4 m outdoors. For taller towers, or outdoor work above that height, speak to our team before installation.

Why a Stairway Tower Instead of a Ladder-Access Tower

Safer climbing

Workers walk up anti-slip stair steps facing forward instead of climbing a vertical ladder, which lowers the risk of slips between levels.

Less fatigue

Stairs are easier on crews who go up and down many times a shift, which is common on MEP, HVAC and maintenance jobs.

Easier to carry tools

A wide entry frame and stair access make it easier to bring tools and materials up to the platform.

Stairway Towers on Staircases and in Narrow Hallways

Indian buildings are full of access problems: narrow corridors in heritage buildings, steep staircases in modern duplexes and cramped service shafts in high-rise apartments. Traditional scaffolding is often too bulky for these spaces, and a ladder is unstable for long tasks.

Working on a staircase. The main hurdle on a stair is the lack of a level base, because every foot of the scaffold rests at a different height. Balancing steel pipes on planks or bricks is unsafe. A stairway tower with adjustable legs can be levelled so it stays stable across several steps, and because aluminium is light, the tower can be carried by hand up the very stairs it is meant to service.

Working in a narrow hallway. Standard scaffold frames are typically 1.3 to 1.5 metres wide and will not pass through a 0.9 metre doorway. Our narrow scaffolding is 0.75 metres wide, so it fits through standard doors and can be moved from room to room without dismantling, which suits interior decorators, electrical contractors and HVAC technicians. Integrated internal climbing keeps the worker inside the footprint of the tower, which lowers the risk of tip-over where there is no room for an external ladder.

For safe set-up and use, read our complete safety guide to using aluminium scaffolding and how to choose the right aluminium scaffolding for your project.

Stairway Scaffolding on Rent or for Purchase

Hire stairway scaffolding for short jobs such as a one-off fit-out, an inspection or a plant shutdown. Buy it if your teams need repeat access across sites or through the year. Purchase prices run from ₹75,600 for the IST034 to ₹331,200 for the IST174. Rental is quoted per project, based on model, quantity, duration and location.

Towers are made at our Panipat plant and delivered across India, with offices in New Delhi, Ahmedabad, Hyderabad, Bengaluru and Kolkata (Dankuni). See the full range on our aluminium scaffolding page, or get the scaffolding catalogue.

Need a stairway tower for your site? Get a price for rent or purchase.

Request a Quote

Stairway Scaffolding Core Features

The engineering details behind a stair-access aluminium tower that crews can climb all day, carrying tools, without fatigue.

Outriggers & Stabilisers

Outriggers clamp to the tower frame and widen its base, so the tower stays steady as it gets taller. Fitted as specified, they give a free-standing height of 12.4 m indoors and 8.4 m outdoors.

Tool-Free Locking System

Frames, braces and platforms connect with a quick-locking system — snap-in brace hooks and interlock clips — so a trained crew can assemble and dismantle the tower without spanners or loose bolts.

Lockable Castor Wheels

Castor wheels let you roll the tower to the next work area, and foot-operated brakes lock it in place before anyone climbs. Non-marking wheels protect finished floors such as marble and vitrified tiles, and adjustable legs level the tower on uneven ground.

Internal Stairway Access

An internal stairway with anti-slip stair steps and a wide entry frame lets workers climb facing forward with tools in hand — safer and less tiring than a vertical ladder.

Ideal Industry Applications for Stairway Scaffolding

Where a stairway tower earns its place — jobs with frequent climbs, heavy tools or long shifts at height.

✓
Industrial maintenance & shutdowns
Repeated climbs with tools and spares during plant maintenance windows.
✓
Electrical & lighting contractors
High-bay lighting, cable trays and overhead fixtures in factories and warehouses.
✓
Malls, airports & atriums
Ceiling, signage and glazing work in high public spaces.
✓
Warehouse maintenance
Sprinkler lines, roof sheeting and racking tops in distribution centres.
✓
Painting & interior finishing
High walls and ceilings where crews carry paint, rollers and materials up and down all day.
✓
Auditoriums & institutions
Stage lighting, acoustic panels and ceiling maintenance in halls and campuses.

Stairway Scaffolding FAQs

Answers to the questions we hear most about Stairway Scaffolding.

What is the maximum working height of your stairway scaffolding?+

The tallest standard model, IST174, gives a working height of 18.4 m, with a platform height of 16.4 m and a tower height of 17.4 m.

How much load can a stairway scaffolding platform carry?+

The platform is rated at 200 kg/m², with platform-specific capacities ranging from 480 kg to 810 kg.

What is the free-standing height of the stairway tower?+

The free-standing height is 12.4 m indoors and 8.4 m outdoors.

What is the difference between working height and platform height?+

Platform height is the height of the deck you stand on. Working height is how high you can reach from it, and on every model it is 2 m above the platform height.

How long does it take to assemble the stairway scaffolding?+

A two-person crew assembles Stairway Scaffolding without tools, using the quick-locking frames, snap-in brace hooks and interlock clips. How long it takes depends on the working height and configuration you need, and our team can also deliver and assemble it on site for you.

Can stairway scaffolding be moved through standard commercial doorways?+

Not when fully assembled, as the tower is wider than a standard single doorway. Stairway Scaffolding is dismantled into its frames, braces and platforms, all of which pass through a normal door, and reassembled on the other side without tools.

Is the platform height of the stairway scaffolding adjustable?+

Yes. The platform can be fixed at any rung level on the frames, so you set it at the height the job needs, and adjustable legs fine-tune the height and level the tower on uneven floors.

What is the price of stairway scaffolding in India?+

Purchase prices range from ₹75,600 for the IST034 (4.4 m working height) to ₹331,200 for the IST174 (18.4 m working height). Rental is quoted per project.

What platform size does the stairway tower use?+

Every model uses a 1.35 m wide × 1.80 m long platform.

Which standards does the stairway scaffolding meet?+

It is built to EN 1004 and IS 2750, made from 6063-T6 aluminium alloy, and manufactured under an ISO 9001:2015 certified quality system.
