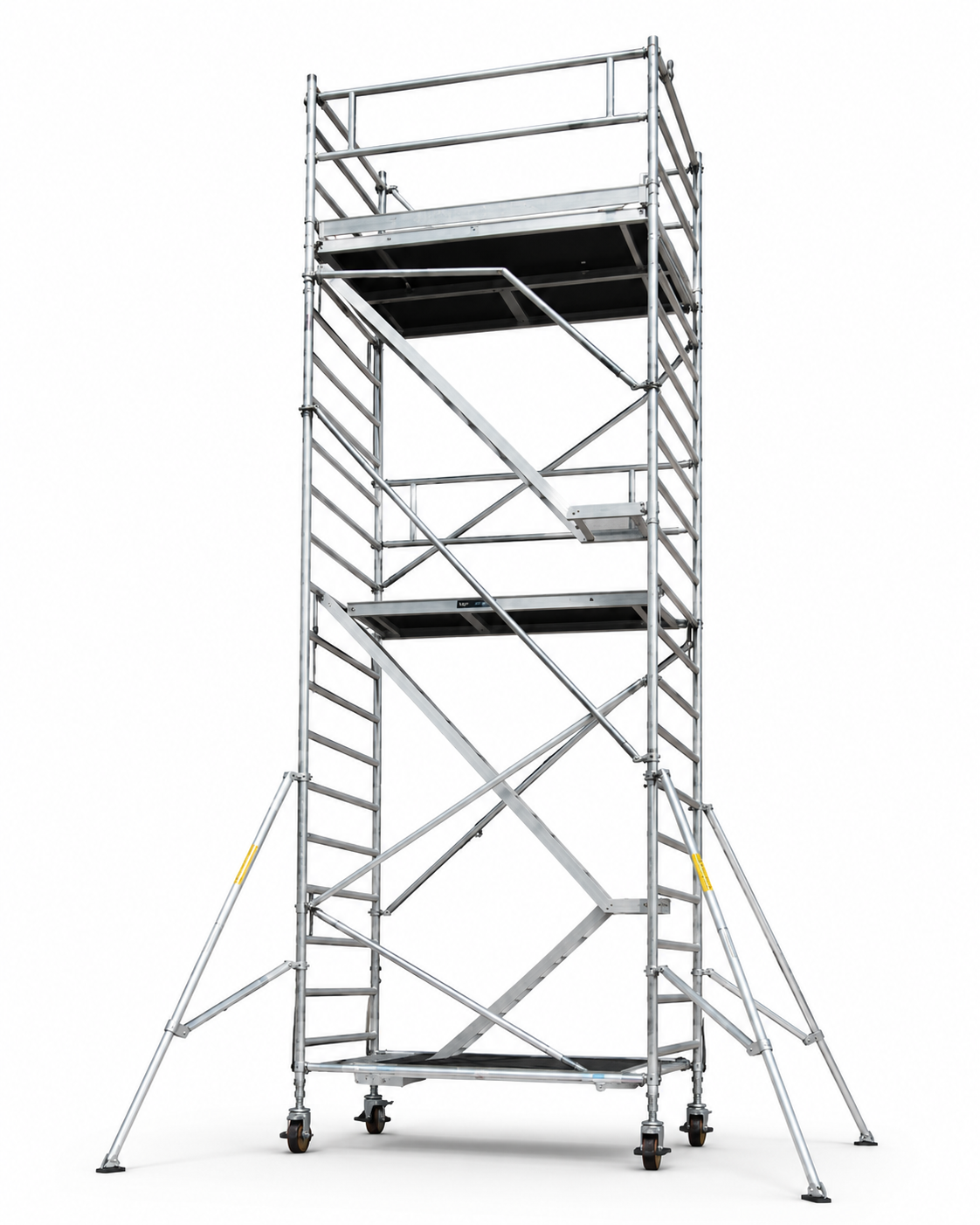

Zig-Zag Scaffolding

Our Zig-Zag Scaffolding is a lightweight, foldable aluminium tower engineered for quick assembly and safe, stable height access. With a modular 1.35m x 1.80m footprint, it offers adjustable working heights from 4.2m up to 13.3m, while its wide entry frame and anti-slip steps allow secure, easy climbing. It supports loads of up to 200 kg/m², with platform-specific capacities ranging from 480 kg to 810 kg, and maintains a stable free-standing height of 12.2m indoors and 8.2m outdoors — making it a durable, flexible solution for construction, maintenance, and industrial applications.

SCAFFOLD SIZE (1.35M X 1.8M )

MODEL NO.

ISZ032

ISZ043

ISZ052

ISZ063

ISZ072

ISZ083

ISZ092

ISZ103

ISZ112

ISZ123

WORKING HEIGHT (M)

4.2

5.3

6.2

7.3

8.2

9.3

10.2

11.3

12.2

13.3

TOWER HEIGHT (M)

3.2

4.3

5.2

6.3

7.2

8.3

9.2

10.3

11.2

12.3

PLATFORM HEIGHT (M)

2.2

3.3

4.2

5.3

6.2

7.3

8.2

9.3

10.2

11.3

PRICING

₹71,400

₹90,100

₹105,400

₹124,100

₹139,400

₹158,100

₹173,400

₹192,100

₹207,400

₹226,100

SCAFFOLD SIZE (1.35M X 1.8M )

MODEL NO.

WORKING
HEIGHT (M)

TOWER
HEIGHT (M)

PLATFORM
HEIGHT (M)

PRICE (₹)

ISZ032

4.2

3.2

2.2

₹71,400

ISZ043

5.3

4.3

3.3

₹90,100

ISZ052

6.2

5.2

4.2

₹105,400

ISZ063

7.3

6.3

5.3

₹124,100

ISZ072

8.2

7.2

6.2

₹139,400

ISZ083

9.3

8.3

7.3

₹158,100

ISZ092

10.2

9.2

8.2

₹173,400

ISZ103

11.3

10.3

9.3

₹192,100

ISZ112

12.2

11.2

10.2

₹207,400

ISZ123

13.3

12.3

11.3

₹226,100

KEY FEATURES

01. Modular Design

Standard scaffolding width (1.35m) and length 1.80m for versatile configuration.

02. Adjustable Height

Working heights can be extended from 4.2m to a maximum of 13.3m using standard components.

03. Easy Access

The wide entry frame allows comfortable entry from outside, and anti-slip steps ensure secure climbing.

04. Robust Loading Capacity

Supports up to 200 kg/m², with platform-specific capacities ranging from 480 kg to 810 kg.

05. Stability and Safety

Free-standing height of 12.2m (indoor) and 8.2m (outdoor) ensures stability and complies with safety standards.

Zig-Zag Scaffolding Specifications

Indoor Innovations manufactures its zig-zag aluminium scaffolding tower in Panipat, Haryana, in 10 standard models from ISZ032 to ISZ123. It is a lightweight, foldable tower built for quick assembly, with a full-size 1.35 m × 1.80 m platform, a wide entry frame and anti-slip steps between platform levels.

Platform size	1.35 m wide × 1.80 m long
Models	10 standard models, ISZ032 to ISZ123
Working height	4.2 m to 13.3 m
Platform height	2.2 m to 11.3 m
Tower height	3.2 m to 12.3 m
Platform load	200 kg/m², with platform-specific capacities from 480 kg to 810 kg
Free-standing height	12.2 m indoors, 8.2 m outdoors
Access	Wide entry frame and anti-slip steps
Material	6063-T6 aluminium alloy
Standards	Built to EN 1004 and IS 2750, made under an ISO 9001:2015 certified quality system
Assembly	Lightweight, foldable and tool-free, using standard components
Supply	Rent or purchase, delivered across India
Purchase price	₹71,400 (ISZ032) to ₹226,100 (ISZ123)

Working Height, Platform Height and Tower Height

Each zig-zag tower model is listed with three heights. Knowing the difference stops you renting a tower that is too short or paying for one that is too tall.

Platform height

The height of the deck the worker stands on. It ranges from 2.2 m on the ISZ032 to 11.3 m on the ISZ123.

Working height

How high a person standing on the platform can comfortably reach. On every model it is 2 m above the platform height.

Tower height

The overall height of the structure, including the guardrails above the platform. On every model it is 1 m above the platform height.

Choose Your Zig-Zag Tower Model by Height

Measure the highest point you need to work on, such as a ceiling, beam, duct or signage. Then pick the first model whose working height meets or exceeds it.

Highest point to reach	Model	Working height	Platform height	Purchase price
Up to 4.2 m	ISZ032	4.2 m	2.2 m	₹71,400
Up to 5.3 m	ISZ043	5.3 m	3.3 m	₹90,100
Up to 6.2 m	ISZ052	6.2 m	4.2 m	₹105,400
Up to 7.3 m	ISZ063	7.3 m	5.3 m	₹124,100
Up to 8.2 m	ISZ072	8.2 m	6.2 m	₹139,400
Up to 9.3 m	ISZ083	9.3 m	7.3 m	₹158,100
Up to 10.2 m	ISZ092	10.2 m	8.2 m	₹173,400
Up to 11.3 m	ISZ103	11.3 m	9.3 m	₹192,100
Up to 12.2 m	ISZ112	12.2 m	10.2 m	₹207,400
Up to 13.3 m	ISZ123	13.3 m	11.3 m	₹226,100

Free-standing height is 12.2 m indoors and 8.2 m outdoors. For taller towers, or outdoor work above that height, speak to our team before installation.

Why Choose a Zig-Zag Tower

Quick to assemble

The tower is lightweight and foldable, so crews can put it up, take it down and move it between work areas quickly.

Full-size platform

The 1.35 m × 1.80 m deck gives crews room to work and keep tools at hand, with platform capacities from 480 kg to 810 kg.

Covers most site heights

Ten models step up roughly 1 m at a time from 4.2 m to 13.3 m working height. For heights up to 18.4 m, see our stairway scaffolding tower.

Zig-Zag Scaffolding on Rent or for Purchase

Hire zig-zag scaffolding for short jobs such as a fit-out, an inspection or a maintenance shutdown. Buy it if your teams need repeat access across sites or through the year. Purchase prices run from ₹71,400 for the ISZ032 to ₹226,100 for the ISZ123. Rental is quoted per project, based on model, quantity, duration and location.

Towers are made at our Panipat plant and delivered across India, with offices in New Delhi, Ahmedabad, Hyderabad, Bengaluru and Kolkata (Dankuni). See the full range on our aluminium scaffolding page, or get the scaffolding catalogue. Working on a multi-level site? Read the complete safety guide to using aluminium scaffolding and our advice on choosing the right aluminium scaffolding for your project.

Need a zig-zag tower for your site? Get a price for rent or purchase.

Request a Quote

Zig-Zag Scaffolding Core Features

The engineering details that make this foldable aluminium tower quick to assemble and stable at height.

Outriggers & Stabilisers

Outriggers clamp to the tower frame and widen its base, so the tower stays steady as it gets taller. Fitted as specified, they give a free-standing height of 12.2 m indoors and 8.2 m outdoors.

Tool-Free Locking System

Frames, braces and platforms connect with a quick-locking system — snap-in brace hooks and interlock clips — so a trained crew can assemble and dismantle the tower without spanners or loose bolts.

Lockable Castor Wheels

Castor wheels let you roll the tower to the next work area, and foot-operated brakes lock it in place before anyone climbs. Non-marking wheels protect finished floors such as marble and vitrified tiles, and adjustable legs level the tower on uneven ground.

Zig-Zag Inclined Ladder Access

Inclined ladders run between platform levels in a zig-zag pattern, with anti-slip steps and a wide entry frame for secure, comfortable climbing.

Ideal Industry Applications for Zig-Zag Scaffolding

Where zig-zag aluminium scaffolding is used — general access jobs from 4.2 m to 13.3 m working height.

✓
Interior fit-outs & false ceilings
Ceiling grids, gypsum work and light fittings in new offices and commercial spaces.
✓
Painting & plastering
Wall and ceiling finishing on residential and commercial projects.
✓
Electrical & HVAC installation
Overhead wiring, ducting and equipment mounting.
✓
Signage & low-rise facades
Shopfront signage, glazing and exterior finishing on low-rise buildings.
✓
Events & exhibitions
Lighting, banners and stand construction at venues.
✓
Residential society maintenance
In-house repairs and upkeep for RWAs and building managers.

Zig-Zag Scaffolding Safety, Testing & Compliance

Every Zig-Zag Scaffolding system is designed, manufactured and load-tested by Indoor Innovations at our own facility in Panipat, Haryana, so you always know who stands behind the equipment your team works on.

Trusted on site by:

Adani

Reliance

Samsung

Siemens

50+ leading companies

Manufactured in Panipat

Frames, braces and platforms are fabricated in-house from 6063-T6 aluminium alloy at our Panipat plant, giving us full control over material quality and workmanship.

Load-Tested Before Dispatch

Every Zig-Zag Scaffolding system is load-tested at our Panipat plant against its rated safe working load before it leaves the factory, so it arrives on site ready for safe use.

EN 1004, IS 2750 & ISO 9001:2015

Designed to EN 1004, the European standard for mobile access towers, and IS 2750, the Indian scaffolding standard, under an ISO 9001:2015 certified quality management system.

Zig-Zag Scaffolding FAQs

Answers to the questions we hear most about Zig-Zag Scaffolding.

What is the maximum working height of your zig-zag scaffolding?+

The tallest standard model, ISZ123, gives a working height of 13.3 m, with a platform height of 11.3 m and a tower height of 12.3 m.

How much load can a zig-zag scaffolding platform carry?+

The platform is rated at 200 kg/m², with platform-specific capacities ranging from 480 kg to 810 kg.

What is the free-standing height of the zig-zag tower?+

The free-standing height is 12.2 m indoors and 8.2 m outdoors.

What platform size does the zig-zag tower use?+

Every model uses a 1.35 m wide × 1.80 m long platform.

What is the difference between working height and platform height?+

Platform height is the height of the deck you stand on. Working height is how high you can reach from it, and on every model it is 2 m above the platform height.

How long does it take to assemble the zig-zag scaffolding?+

A two-person crew assembles Zig-Zag Scaffolding without tools, using the quick-locking frames, snap-in brace hooks and interlock clips. How long it takes depends on the working height and configuration you need, and our team can also deliver and assemble it on site for you.

Can zig-zag scaffolding be moved through standard commercial doorways?+

Not when fully assembled, as the tower is wider than a standard single doorway. Zig-Zag Scaffolding is dismantled into its frames, braces and platforms, all of which pass through a normal door, and reassembled on the other side without tools.

Is the platform height of the zig-zag scaffolding adjustable?+

Yes. The platform can be fixed at any rung level on the frames, so you set it at the height the job needs, and adjustable legs fine-tune the height and level the tower on uneven floors.

What is the price of zig-zag scaffolding in India?+

Purchase prices range from ₹71,400 for the ISZ032 (4.2 m working height) to ₹226,100 for the ISZ123 (13.3 m working height). Rental is quoted per project.

Which standards does the zig-zag scaffolding meet?+

It is built to EN 1004 and IS 2750, made from 6063-T6 aluminium alloy, and manufactured under an ISO 9001:2015 certified quality system.
